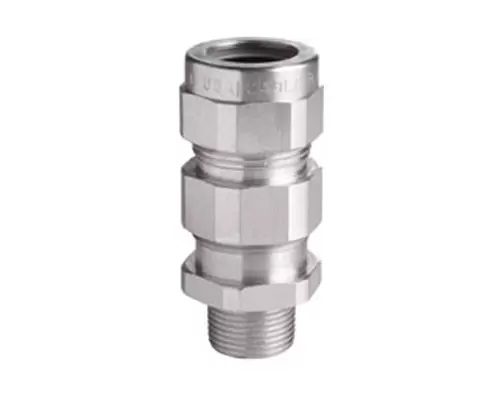

Gland Type:
Armoured and TECK armoured

Type:
Metal-clad (interlocked or continuously welded corrugated armoured)
and TECK
Certifications and Compliances:
• UL Listed – UL File E36379
• CSA Listed – CSA File LR291
• NEMA 4 and IP56
• Wet locations

Features:
• Standard material is aluminum
• Stainless steel copper-plated spring provides grounding continuity
of cable armour
• Watertight seal on outer sheath of cable
• Standard neoprene seal suitable for use in operating temperatures
-25° to 60°C
• Cold Shrink™ Kit is available for extra protection in aggressive
environments (see page 102)
• Available with NPT threads
• See page 102 for related accessories
